Full bodied floor drains
A comprehensive range of adjustable height full bodied floor drains with stainless steel grates for vertical and horizontal pipe connections.
Full bodies floor drains - features & benefits
 | Vertical Deep Floor Drains |
 | Square grates for use in any application |
 | Linished Heelguard Grates for a high quality finish |
 | Horizontal Floor Drains |

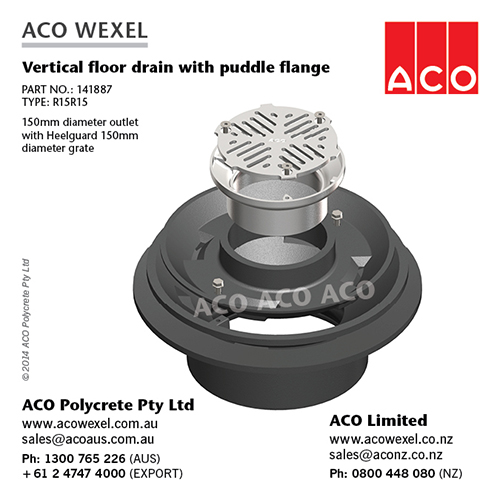

 | Vertical Puddle Flange Floor Drains |
 | Membrane Clamp Ring available on most models for floor waterproofing |

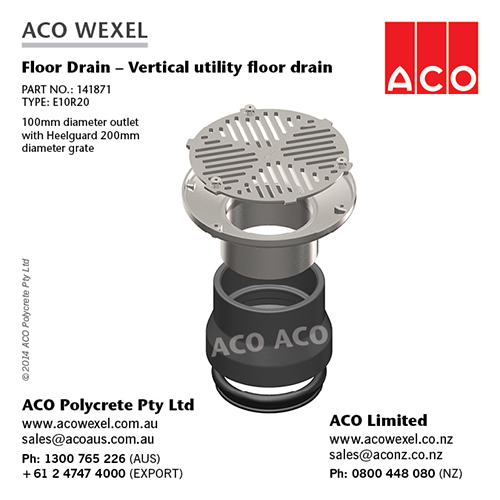

 | Vertical Utility Floor Drains |

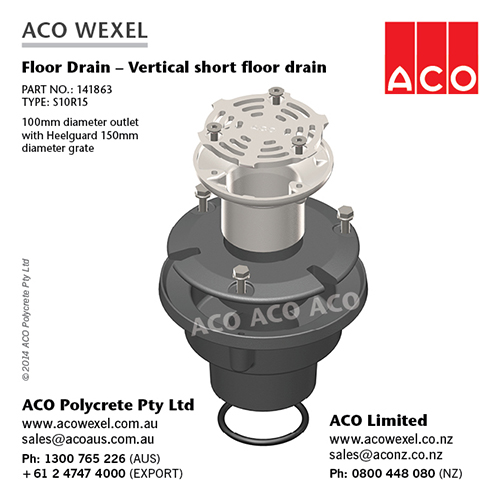

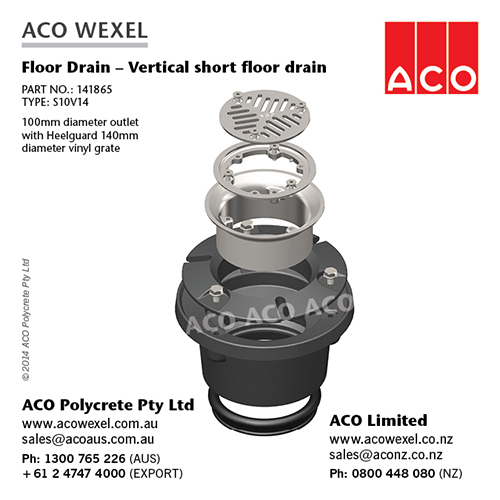

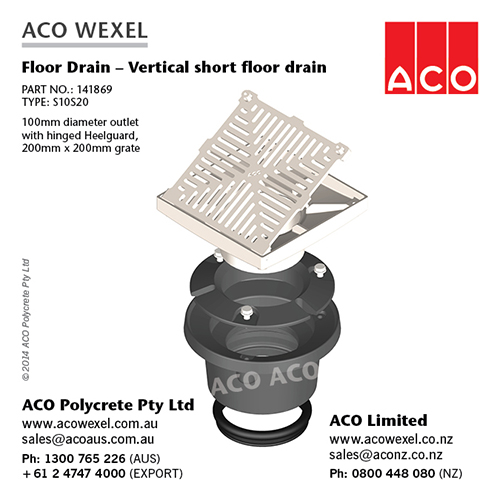

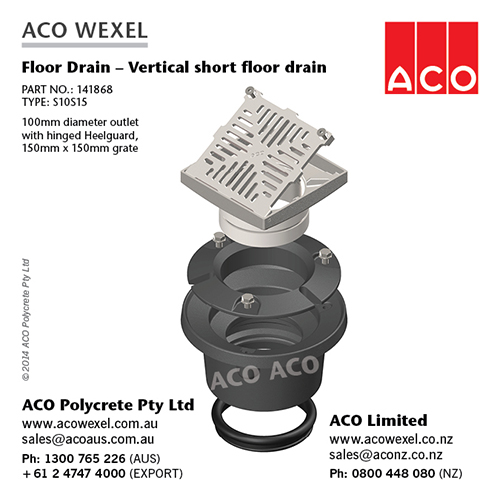

 | Vertical Short Floor Drains |
Full bodies floor drains - product details
| Part No. | Description | Wgt kg | JPG | DWG | |
|---|---|---|---|---|---|
| 141876 | 100mmØ outlet with 150mmØ round grate1. Load Class L15 | 17.5 |  |
 |
 |
| 141877 | 100mmØ outlet with 200mmØ round grate1. Load Class K3 | 18.5 |  |
|
|
| 141878 | 100mmØ outlet with 140mmØ round vinyl grate. Load Class L15 | 17.3 |  |
|
|
| 141879 | 100mmØ outlet with 180mmØ round vinyl grate1. Load Class K3 | 17.8 |  |
|
|
| 141880 | 100mmØ outlet with 150x150mm square grate1. Load Class L15 | 18.3 |  |
|
|
| 141881 | 100mmØ outlet with 200x200mm square grate1. Load Class L15 | 19.9 |  |
|
|
| 141882 | 100mmØ outlet with 300x300mm square grate2. Load Class L15 | 26.5 |  |
|
|
Notes:
1. Removable strainer basket available, Part No. 141920 to suit nominal 100mm diameter – see Accessories
2. Body and grate assemblies are also sold separately, contact ACO
| Part No. | Description | Wgt kg | JPG | DWG | |
|---|---|---|---|---|---|
| 141870 | 100mmØ outlet with 150mmØ round grate1. Load Class L15 | 4.0 |  |
|
|
| 141871 | 100mmØ outlet with 200mmØ round grate1. Load Class L15 | 5.1 |  |
|
|
| 141872 | 100mmØ outlet with 140mmØ vinyl round grate. Load Class L15 | 4.0 |  |
|
|
| 141873 | 100mmØ outlet with 180mmØ vinyl round grate1. Load Class L15 | 4.5 |  |
|
|
| 141874 | 100mmØ outlet with 150x150mm square grate1. Load Class L15 | 4.8 |  |
|
|
| 141875 | 100mmØ outlet with 200x200mm square grate1. Load Class L15 | 6.6 |  |
|
|
Notes:
1. Removable strainer basket available, Part No. 141920 to suit nominal 100mm diameter – see Accessories
2. Body and grate assemblies are also sold separately, contact ACO
3. All dimensions are in mm
| Part No. | Description | Wgt kg | JPG | DWG | |
|---|---|---|---|---|---|
| 141862 | 50mmØ outlet with 100mmØ round grate. Load Class L15 | 4.5 |  |
|
|
| 141864 | 100mmØ outlet with 200mmØ round grate1. Load Class K3 | 9.3 |  |
|
|
| 141866 | 100mmØ outlet with 180mmØ vinyl round grate1. Load Class K3 | 9.7 |  |
|
|
| 141867 | 50mmØ outlet with 100x100mm square grate | 4.6 |  |
|
|
Notes:
1. Removable strainer basket available, Part No. 141920 to suit nominal 100mm diameter – see Accessories
2. Body and grate assemblies are also sold separately, contact ACO
3. All dimensions are in mm
| Part No. | Description | Wgt kg | JPG | DWG | |
|---|---|---|---|---|---|
| 141883 | 100mmØ outlet with 150mmØ round grate1. Load Class L15 | 13.7 |  |
|
|
| 141884 | 100mmØ outlet with 200mmØ round grate1. Load Class K3 | 14.7 |  |
|
|
| 141885 | 100mmØ outlet with 140mmØround vinyl grate. Load Class L15 | 13.6 |  |
|
|
| 141886 | 100mmØ outlet with 180mmØ round vinyl grate1. Load Class K3 | 14.2 |  |
|
|
| 141887 | 150mmØ outlet with 150mmØ round grate1. Load Class L15 | 15.6 |  |
|
|
| 141888 | 150mmØ outlet with 200mmØ round grate1. Load Class K3 | 16.6 |  |
|
|
| 141889 | 150mmØ outlet with 140mmØ round vinyl grate1. Load Class L15 | 15.5 |  |
|
|
| 141891 | 100mmØ outlet with 150x150mm square grate1. Load Class L15 | 14.4 |  |
|
|
| 141892 | 100mmØ outlet with 200x200mm square grate1. Load Class L15 | 16.2 |  |
|
|
| 141893 | 100mmØ outlet with 300x300mm square grate2. Load Class L15 | 23.0 |  |
|
|
| 141894 | 150mmØ outlet with 150x150mm square grate1. Load Class L15 | 16.4 |  |
|
|
| 141895 | 150mmØ outlet with 200x200mm square grate1. Load Class L15 | 18.2 |  |
|
|
| 141896 | 150mmØ outlet with 300x300mm square grate2. Load Class L15 | 24.8 |  |
|
|
Notes:
1. Removable strainer basket available, Part No. 141920 to suit nominal 100mm diameter – see page 31
2. Removable strainer basket available, Part No. 141923 to suit nominal 150mm diameter – see page 31
3. Body and grate assemblies are also sold separately, contact ACO
| Part No. | Description | Wgt kg | JPG | DWG | |
|---|---|---|---|---|---|
| 141897 | 50mmØ outlet with 100mmØ round grate. Load Class L15 | 3.8 |  |
|
|
| 141898 | 100mmØ outlet with 150mmØ round grate1. Load Class L15 | 10.6 |  |
|
|
| 141899 | 100mmØ outlet with 200mmØ round grate1. Load Class K3 | 11.6 |  |
|
|
| 141902 | 50mmØ outlet with 100x100mm square grate . Load Class L15 | 4.0 |  |
|
|
| 141903 | 100mmØ outlet with 150x150mm square grate1. Load Class L15 | 11.3 |  |
|
|
| 141904 | 100mmØ outlet with 200x200mm square grate1. Load Class L15 | 13.1 |  |
|
|
Notes:
1. Removable strainer basket available, Part No. 141920 to suit nominal 100mm diameter – see page 31
2. Removable strainer basket available, Part No. 141923 to suit nominal 150mm diameter – see page 31
3. Body and grate assemblies are also sold separately, contact ACO
4. All dimensions are in mm
