Push-fit floor drains
Push-in floor drains with ‘O’ ring seals, to provide a quick and watertight connection for both PVC and HDPE pipe. Complete with linished stainless steel grates.
Push-fit floor drains - features & benefits
 | Linished stainless steel Heelguard grates for high quality finish |
 | Circular grates are ideal for use in screeded and vinyl sheet floors |
 | Square grates can be used in any application, but are ideal for use in tiled floors as they are available in common sizes and allow easy cuts |
 | Choice of 'O' rings. Combatible with either PVC and HDPE pipes |
Push-fit floor drains - product details
| Part No. | Description | Wgt kg | JPG | DWG | |
|---|---|---|---|---|---|
| 141855 | 50mmØ outlet with 100mmØ grate. Load Class L15 | 0.5 |  |
 |
 |
| 141856 | 100mmØ outlet with 150mmØ grate. Load Class L15 | 1.2 |  |
|
|
| 141857 | 100mmØ outlet with 140mmØ vinyl grate. Load Class L15 | 1.1 |  |
|
|
| 142112 | 100mm outlet with 150mmØ slip resistant solid top cover to suit concrete, resin and tile floors. Load Class L15 | 1.4 |  |
|
|
| 141958 | 100mmØ outlet with 140mmØ vinyl grate - solid top clean-out. Load Class L15 | 1.3 |  |
|
|
| 141858 | 100mmØ outlet with 180mmØ vinyl grate. Load Class K3 | 2.0 |  |
|
|
Notes:
1. Removable strainer basket available, Part No. 141920 to suit nominal 100mm diameter – see Accessories
2. All dimensions are in mm

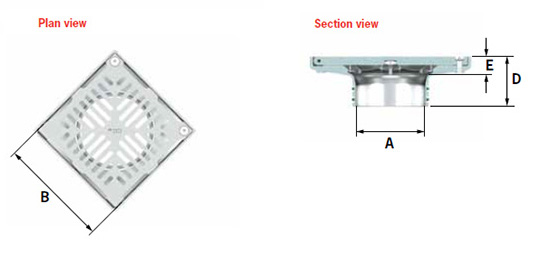

| Part No. | Description | Wgt kg | JPG | DWG | |
|---|---|---|---|---|---|
| 141859 | 50mmØ outlet with 100x100mm grate. Load Class L15 | 0.7 |  |
|
|
| 141860 | 100mmØ outlet with 150x150mm grate. Load Class L15 | 1.6 |  |
|
|
| 141861 | 100mmØ outlet with 200x200mm grate. Load Class L15 | 3.2 |  |
|
|
Notes:
1. Removable strainer basket available, Part No. 141920 to suit nominal 100mm diameter – see Accessories
2. All dimensions are in mm
